Quick Details

  • Type: Acoustic Panels
  • Place of Origin: China (Mainland)
  • Brand Name: foreverlove
  • Model Number: FL-A9
  • Acoustic Panel Type: Metal Acoustic Panels
  • Metal type: steel or aluminium
  • Metal Thickness: 1.0mm-1.5mm
  • Panel Height: 0.5m, 1m
  • Panel Length: 2.0m, 2.5m, 3m, 4m
  • Panel Thickness: 8cm, 10cm
  • Fence Height: 3.0m as standard
  • RW: ≥30dB
  • NRC: ≥0.84
  • oringin: anping
  • Application: highway, railway, residence, factory etc

Packaging & Delivery

Packaging Details In pallet or as comuster's request
Delivery Time whithin 7-15 days when we confirm the deposit
 highway soundproof acoustic foam panels noise barrier
Product Description



 1. Product normal spec.
 Name  Noise barrier/acoustic pannle barrier/sound barrier
 Length  ≥0.5m
 Hight  Customed
 Thickness (unit piece)  ≥50mm
 Material  aluminum, galvanized steel sheet, acrylic/PC, etc

 Hole Ratio


 Hole Diameter


 Pitch of Holes



 100*100*8mm and offer customed
 Flange plate  Customed
 Packing  PE film and Whaterproof material
 RW  ≥35dB
 NRC  ≥0.84
 Post  H steel post
 Post size

 Depend on the size


 2. Producing line show

hot dipped galvanized---raw material---cutting---

flange plate---welding---sandblast---PVC coating



 Brief information


Inset a facility between source and receiver, to make the noise obviously weaken its strength,

then the receiver zone would be affected smaller, this equipment is sound barrier.

Types of sound barrier

a. According to the application environment

     Traffic sound barrier

     Equipment sound reduction barrier

     Boundary of industrial enterprises sound barrier

b. According to the material

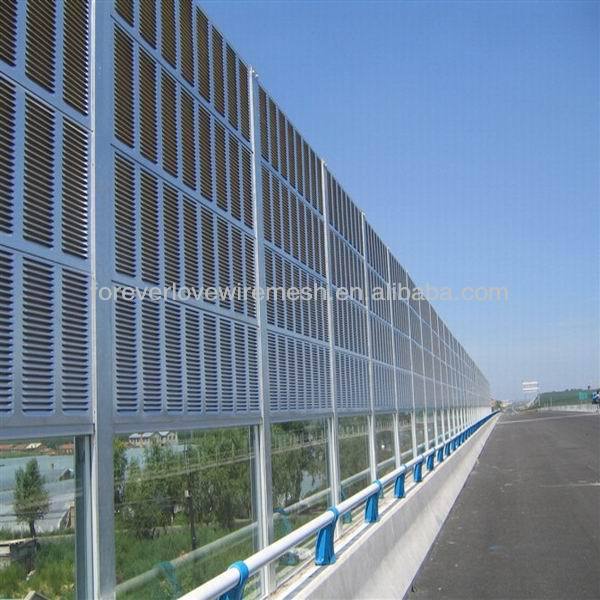

      Metal sound barrier (louver and microporous shape)

      Concrete sound barrier

      PC, acrylic and tempered glass sound barrier

      PC fiberglass sound barrier has been produced in our company,

      it will improve the visual sense and noise reduction effect.



4.Application and used

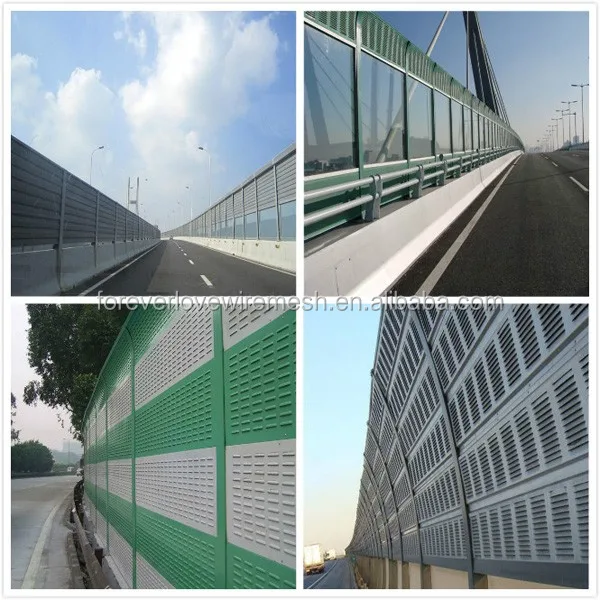

railway and highway sound barrier

urban landscape and residential area sound barrier



Different color and shape could be matched with each other to form a beautiful landscape.

Weather resistance: it is waterproof, heat resistance, anti-ultraviolet, the noise barrier will not degrade its performance and quality for the change of rainwater's temperature.

Fabricated construction, it will improve work effciency, reduce time and cost.

Fast installation and maintenance, convenient update.

Light weight, inflaming retarding with the best chemical stability.


Panel Height (mm) Panel Thickness (mm) Panel Length
500 80 according to the required size
500 100
1000 80
1000 100
 Note: It can be customized according to customer's required size
Post Length (mm) Post Width (mm) Post Height (mm) Post Thickness (mm)
100 100 6 8
125 125 6.5 9
150 150 7 10
175 175 7.5 11




Company Information




ANPING COUNTY FOREVERLOVE WIRE MESH PRODUCTS CO., LTD is a manufacturer and exporter, it has more then 10 years of production experience, the main production of railway noise barrier, gelizha, slope protection gabion mesh, fence netting, construction mesh, wire mesh and wire mesh products.

Sound barriers at present, the products include highway noise barrier and the railway noise barrier, urban landscape sound barrier, residential noise barrier, equipment noise attenuation of noise barriers, cement sawdust sound barrier. And have stone cage net, bing mesh, fence netting, construction mesh, barbed wire, etc.

Most of our products are widely exported to Europe, South America, Australia, Dubai and some Asian countries.
